Clamping devices, lubrification and filter for CrazyMill Cool Micro

General information

In the industry for metal work tools, shorter processing times are always in demand. At the same time, the requirements to the manufacturing precision and process reliability are growing. To fulfill these requirements, the "machine tool (all types of drilling machines) – spindle – tool – tool holder" system must be perfectly adjusted.

The following requirements have to be taken into account:

  • For the machine tool: High level of stiffness, vibration isolation of the foundations, lightweight design of the moving parts, high concentricity accuracy of the spindle, pull-in forces of the machine spindle, intelligent and quick machine controls
  • For the tool holder: High concentricity and balanced, friction-locked tightening of the tool
  • For the tool: High concentricity, excellent balance quality (geometry and shank design), long tool  life (tool material, geometry, coating)

Tool Holders

Hydraulic expansion tool holder

These ensure the high concentricity during drilling.

MikronTool-products-Additional-Tech-Specs-Tool-Holders-Hydraulic

Characteristics:

  • Concentricity: 0.003 mm (.00012") (measuring point at 2.5 x D)
  • Max. speed: 50'000 rpm / balance rate (G 2.5 / 25000 1/min)
  • Precise concentric clamping
  • High torque transmission
  • Maintenance-free (closed system)
  • No wear in the clamping diameter
  • Longer (up to 4 times) tool life
  • Adjustable clamping force
  • Short tool change time (without additional devices such as, shrink fit device)

Application:

  • High-precision clamping of tools with cylindrical shaft
  • Universal tool holder for drilling and milling (roughing and finishing). Advantageous in the case of HSC processing (milling, for example on a small CNC milling machine) due to its shock-absorbing.

Shrink fit tool holder - shrink fit tool holder according to DIN 69871

These guarantee highest concentricity with secure friction-fit connection and form an optimal connection between the tool and the holder.

MikronTool-products-Additional-Tech-Specs-Tool-Holders-Shrink-Fit

Characteristics:

  • Concentricity: ≤ 0.003 mm (.00012")
  • Max. speed: 40'000 rpm
  • Absolutely secure friction-fit force transmission
  • Adequate for shaft diameter of 4 mm (.158") (3 mm (.118") are conditionally possible).
  • Transmittable torque 2 to 4 times higher compared to the hydraulic-tool holder and the high precision collet tool holder.
  • Average tool change time (shrink fit device is necessary)
  • Suitable for machining in narrow spaces and interfacing edges due to the small overall construction size and longer versions

Application:

  • Optimal for HSC machining, in particular also for smallest drill bits
  • For milling and drilling tools with cylindrical shaft

Collet tool holder systems (ER collet chucks) according to DIN 6499-A / optimized precision collets

These guarantee highest concentricity.

MikronTool-products-Additional-Tech-Specs-Tool-Holders-ER-Collect

Characteristics:

  • Concentricity: 0.003 mm (.00012") possible
  • Max. speed: 40'000 rpm
  • Average tool change time (a torque wrench is necessary)

Application:

  • Clamping of tools with a cylindrical shaft in high precision collet according to DIN 6499
  • Universal tool holder for milling (roughing and finishing) and drilling.

Balance quality

The balance quality of the collet tool holder is specially critical in high speed machining processes. The best possible balance quality guarantees not only reduced vibrations of the tool but increases tool life, improves surface quality and above all, protects the spindle bearings.

Type of machines

CrazyMill Cool Micro can be used on milling machines (for example micro milling machine), CNC machining centers (for example small CNC milling machine) and transfer machines (for example rotary transfer machine).

  • Minimum speed 10'000 rpm (diameter of the milling tool > 3 mm (.118"))
  • Minimum speed 20'000 rpm (diameter of the milling tool < 3 mm (.118"))
  • Minimum concentricity of spindle 5 µm (.00019")

Coolant / filter, coolant pressure and quantity

For best results, Mikron Tool recommends the use of cutting oil as coolant fluid. Alternatively, emulsion of 8% or more with EP-Additives (Extreme-Pressure-Additives) can be used with good results as well.

  • Filter: the large cooling channels allow the use of a standard filter. Filter quality ≤ 0.050 mm (.0020")
  • Coolant pressure: for CrazyMill Cool Z4, milling tool with IK (milling tool with through-shaft cooling), at least 15 bar (218 psi) of coolant pressure is needed to mill with a reliable process.

Even higher pressure is generally better for the cooling and flushing effect.

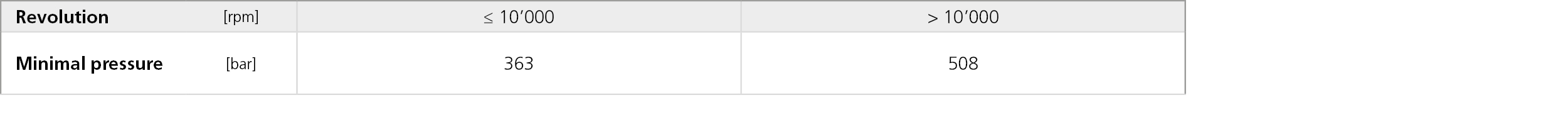

Chart for coolant pressure and flow rate:

Cooling lubricant: cutting oil, viscosity category 15

CMC Micro Pressure

Shaft diameter of the milling cutter 3 mm - 4 mm.

Work piece clamping

Work piece clamping is extremely important when milling due to the appearance of radial and axial forces. Vibrations on the work piece affect not only surface quality and precision of the work piece but also tool life. Work piece clamping that is as vibration-free and stable as possible is therefore recommended.
